प्रकार:
Design
आईपीआर स्थिति:
Copyright
में सुरक्षित:
India
आवेदन / उपयोग करता है:

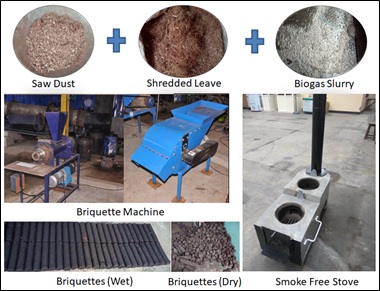

It can be used for the production of biomass briquettes from dry leaves, waste wood and sludge of bio-digester or cow-dung as binder. Compacting biomass waste into briquettes can reduce the volume of biomass upto 70%.
- Capacity: 80-100 kg/hr (wet condition)
- Input material: Mixture of agro waste with maximum size 8 mm.
- Binder Material: Biogas sludge/cow dung/paper pulp etc.
- Augar Shaft: Dia.50 mm.
- Finished Briquette Dia. 50-60 mm. (±20%)
- MOC: Mild steel (IS:2062)
मुख्य तकनीकी सुविधाएँ होड़:
- Diversified feedstock can be used.
- Simple and user friendly design.
- Small, compact and portable machine
- Variable size and shape of output product
Status of Commercialization:
Technology has been transferred to one MSME client M/s Siya Instruments, Udaipur, Rajasthan in March, 2022
प्रमुख कच्चे माल का उपयोग किया जा करने के लिए:
Dry Leaves, Paddy Straw, Dead Braches, Dry Grass etc.
Techno Economic:
Available on Enquiry Basis. Manufacturing cost: Rs. 0.8 Lakh (approx.). Return of Investment : Less than three year
प्रौद्योगिकी पैकेज:
Complete Manufacturing Drawings & Technology Knowhow with Operation Manual, List of Bought Out Materials with Sources
स्तर / विभाग के कौशल:
Installed in CMERI Residential Campus which is operational.
टीआरएल:
TRL 6
